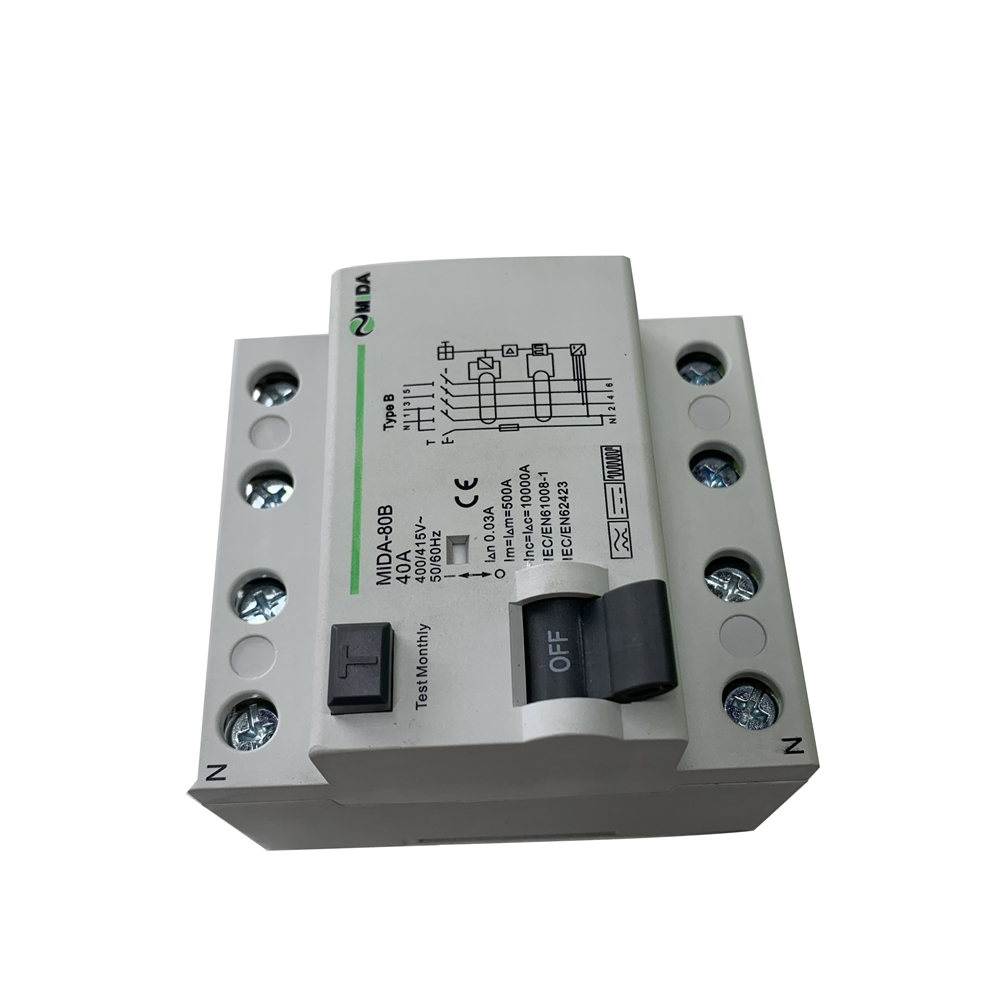

40A 63A 100A 4P B Type RCD RCCB Circuit Breaker

Short Description:

Rated Current:
40A 63A 80A 100A
Operating Voltage
240V
Insulation Resisitance
>1000MΩ(DC500V)
Withstand Voltage
500V
Contact Pin
Copper alloy, Silver plating
Working temperature
-30°C ~+50°C
Flame Retardant Grade
UL94 V-0
Contact Resistance
0.5mΩ Max


Product Detail

FAQ

Product Tags

Rated Current:
25A 32A 40A 63A 80A 100A
Operating Voltage
240V
Insulation Resisitance
>1000MΩ(DC500V)
Withstand Voltage
500V
Contact Pin
Copper alloy, Silver plating
Working temperature
-30°C ~+50°C
Flame Retardant Grade
UL94 V-0
Contact Resistance
0.5mΩ Max
Waterproof
IP20
Certificate
CE Approved

Rated residual operation current(I n)    30mA , 100mA , 300mA

Short-circuit current Inc= I c             10000A

Electrical life                                          2,000 Cycles
Mechanical life                                       4,000 Cycles

Terminal connection type                   Cable/Pin type busbar U-type busbar



Features
RCBOs type B grant protection to persons and machineries in presence of DC current and high frequency AC fault current. Among the several types
of RCBOs, type B provide the upmost level of protection. Some applications’ examples are: electrical installations protecting elevators, escalators,
welding machines, electro-medicals’ instrumentation, ventilation systems, PV systems, e-mobility charging stations.
