Quick Answer: The Ultimate Highway Charging Solution

The Terra 184 Series 180kW DC Fast EV Charger is a high-performance, modular charging station designed to meet the rigorous demands of highway corridors, public charging hubs, and heavy-duty electric vehicle fleets. Featuring Dual CCS1 connectors, it allows two vehicles to charge simultaneously with intelligent power sharing, providing up to 180kW of continuous power to a single vehicle. Equipped with MIDA’s advanced power modules, it supports a wide output voltage range from 150V to 1000V DC, making it future-proof for next-generation 800V high-voltage EV platforms.

Key Takeaways

• Dual-Port Flexibility: Simultaneous charging with two CCS1 guns and dynamic load management.
• Extreme Efficiency: Peak efficiency ≥95.5%, reducing operational costs and heat dissipation.
• Reliability: IP54 rated enclosure for harsh outdoor environments (-30°C to +50°C).
• Smart Connectivity: Built-in 4G/WiFi/Ethernet with full OCPP 1.6J and 2.0.1 support for CPO integration.

Product Overview and Engineering Excellence

The Terra 184 Series represents the pinnacle of MIDA’s engineering, focused on balancing ultra-fast charging speeds with long-term reliability. At its core are high-efficiency 30kW/40kW power modules that ensure a stable DC output. The modular design not only facilitates easy maintenance but also allows for future power upgrades by simply adding or swapping modules. The user interface features a 7-inch high-brightness touchscreen, providing real-time data on charging status, energy consumption, and billing information.

Technical Specifications

Application Scenarios

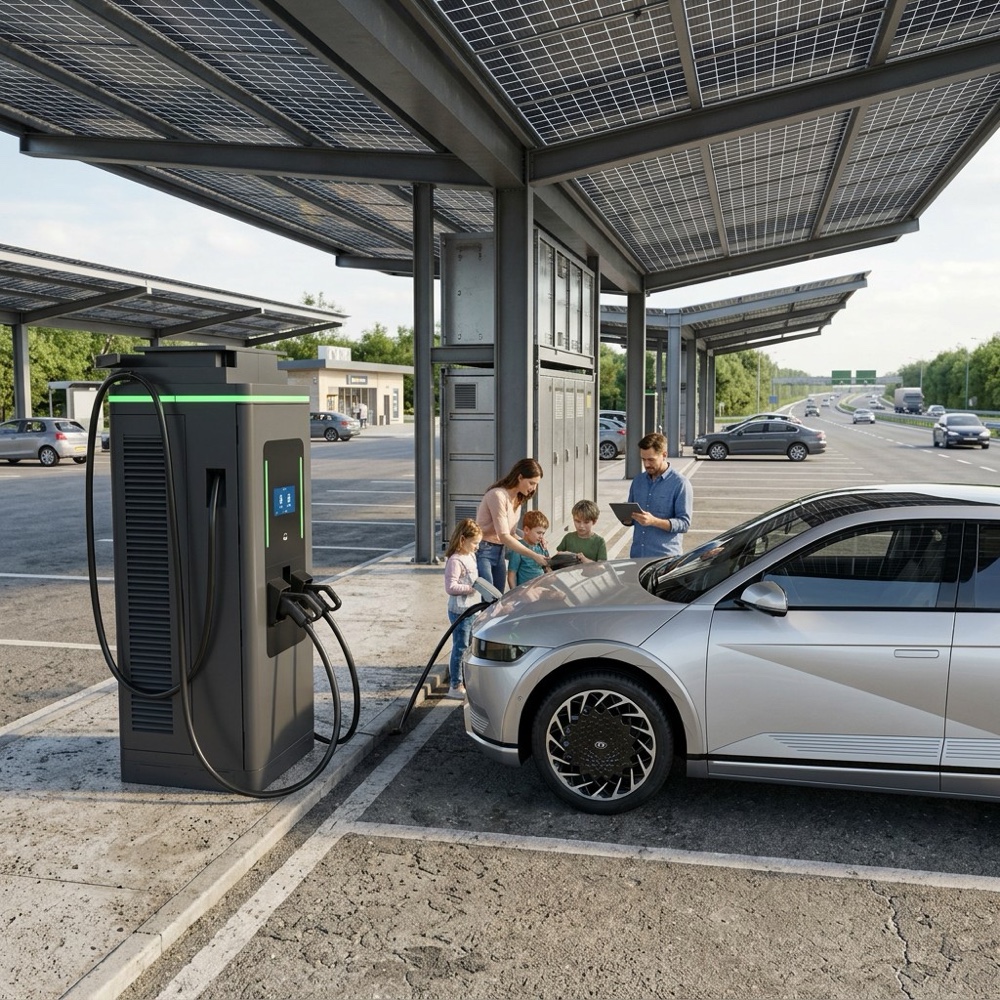

1. Highway Service Areas: The Terra 184 is ideal for ‘splash and go’ charging, providing 100km of range in less than 10 minutes. Its robust cooling system ensures consistent performance even during peak summer travel seasons.

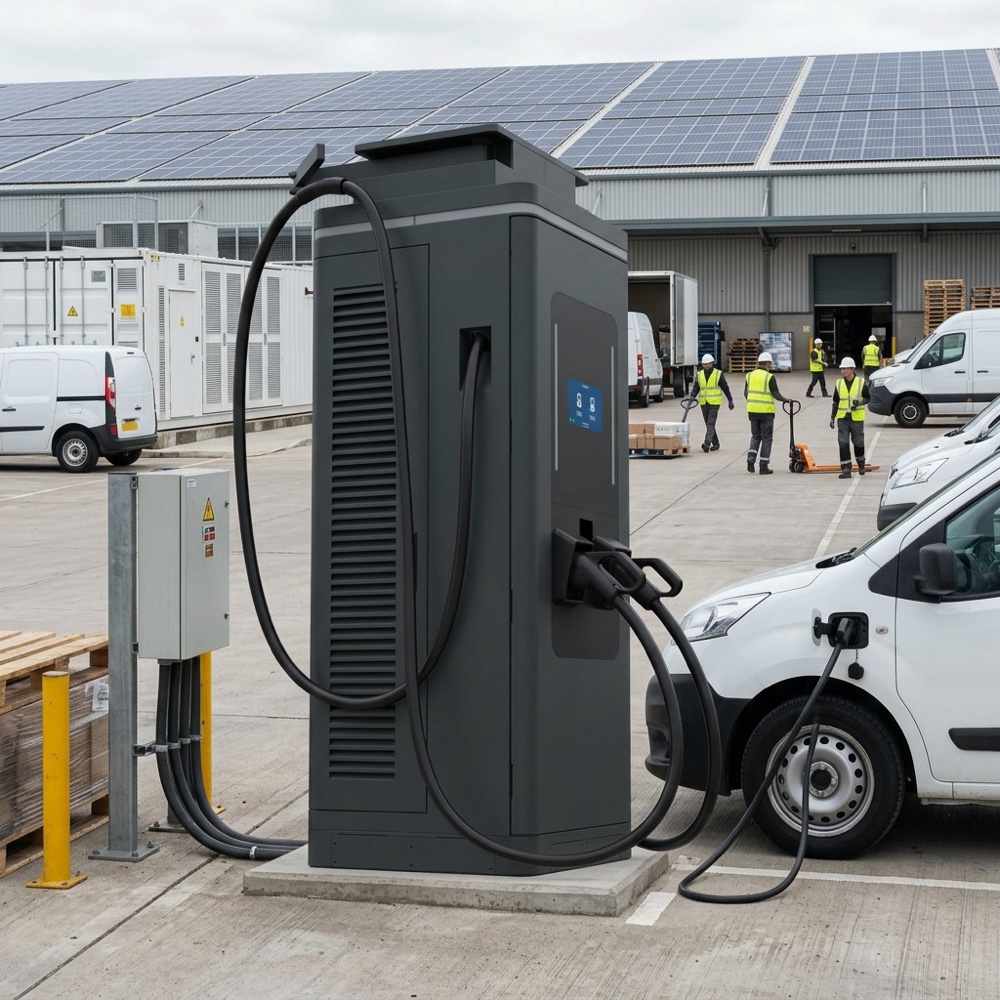

2. Commercial Logistics Fleets: For electric trucks and vans, the 180kW output ensures rapid turnaround times, keeping fleets on the move and minimizing downtime in delivery schedules.

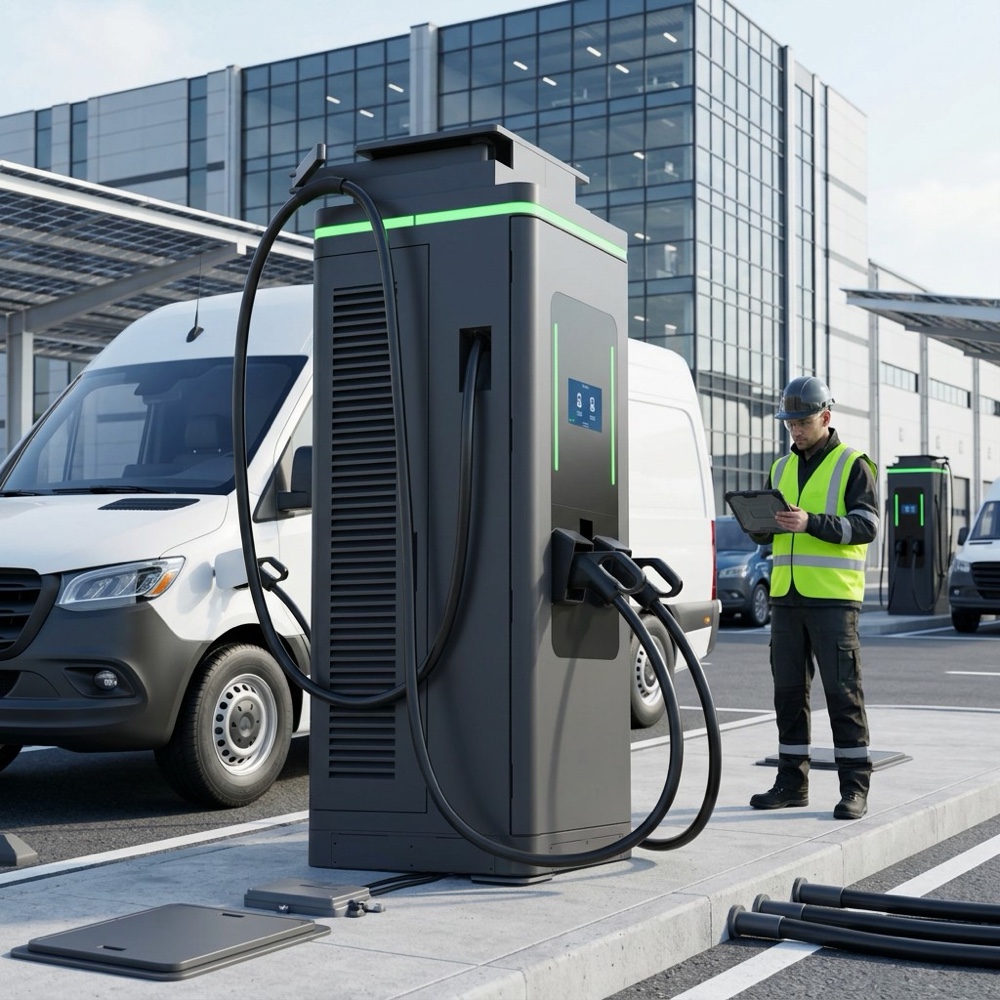

3. Public Parking Hubs: Retail centers and transit hubs benefit from the dual-gun design, doubling the throughput of charging sessions without increasing the footprint of the installation.

Safety and Compliance

Safety is non-negotiable in high-power DC charging. The Terra 184 Series includes multi-layer protection mechanisms: over-voltage, under-voltage, short-circuit, over-temperature, and ground fault protection. It is certified to UL and FCC standards, ensuring compliance with North American grid requirements. The emergency stop button is strategically located for immediate physical disconnect in case of any anomaly.

Frequently Asked Questions (FAQ)

Q1: Can it charge two cars at the same time? Yes, it supports simultaneous charging with intelligent power distribution between the two CCS1 ports.

Q2: Does it support 800V EVs? Absolutely. With a 1000V DC output range, it is fully compatible with high-voltage vehicles like the Porsche Taycan and Hyundai IONIQ 5.

Q3: Is it suitable for extreme cold weather? Yes, it operates reliably down to -30°C with built-in internal heating systems.

Q4: What is the typical charging time? For a standard 60kWh battery, it can charge from 10% to 80% in approximately 15-20 minutes.

Q5: Can I manage the charger remotely? Yes, through OCPP integration, you can monitor status, set pricing, and manage users via any compliant backend platform.

Q6: What is the warranty period? We offer a standard 2-year warranty with options to extend up to 5 years.
