Quick Answer: Reliable High-Speed Charging for Commercial Hubs

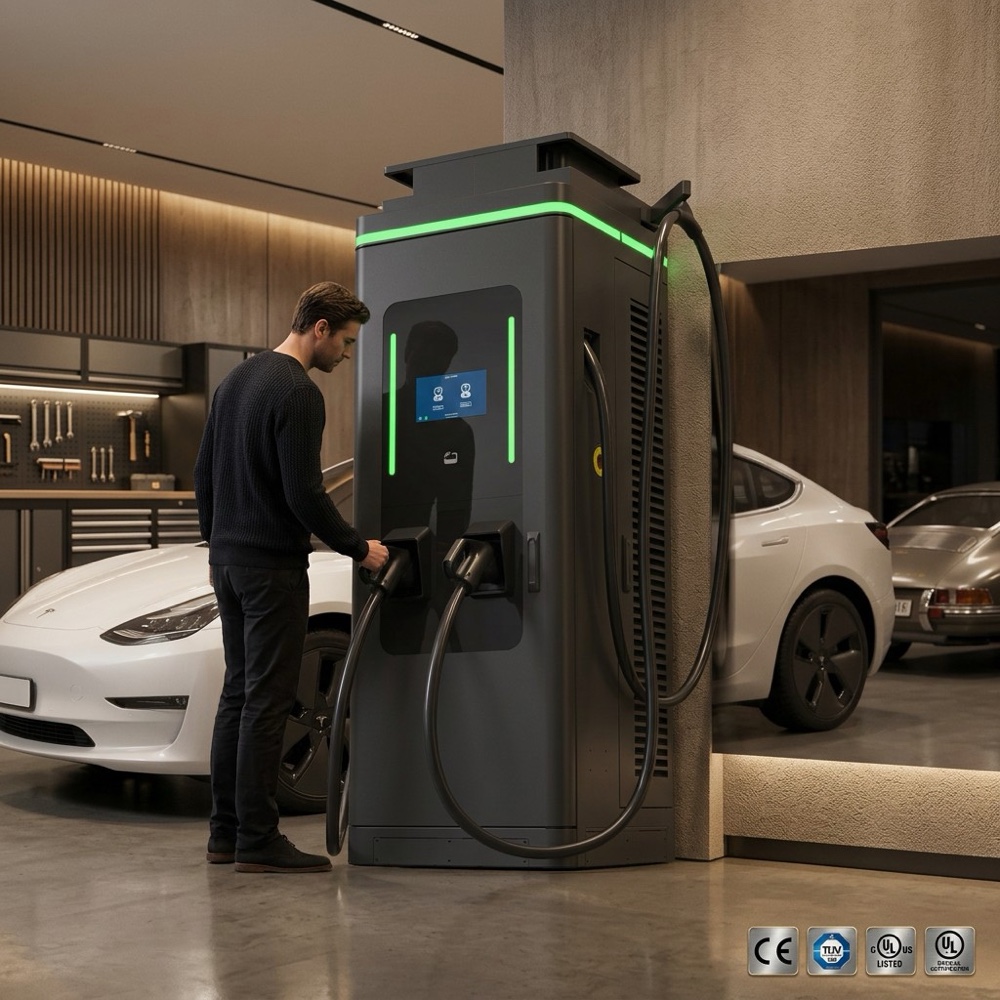

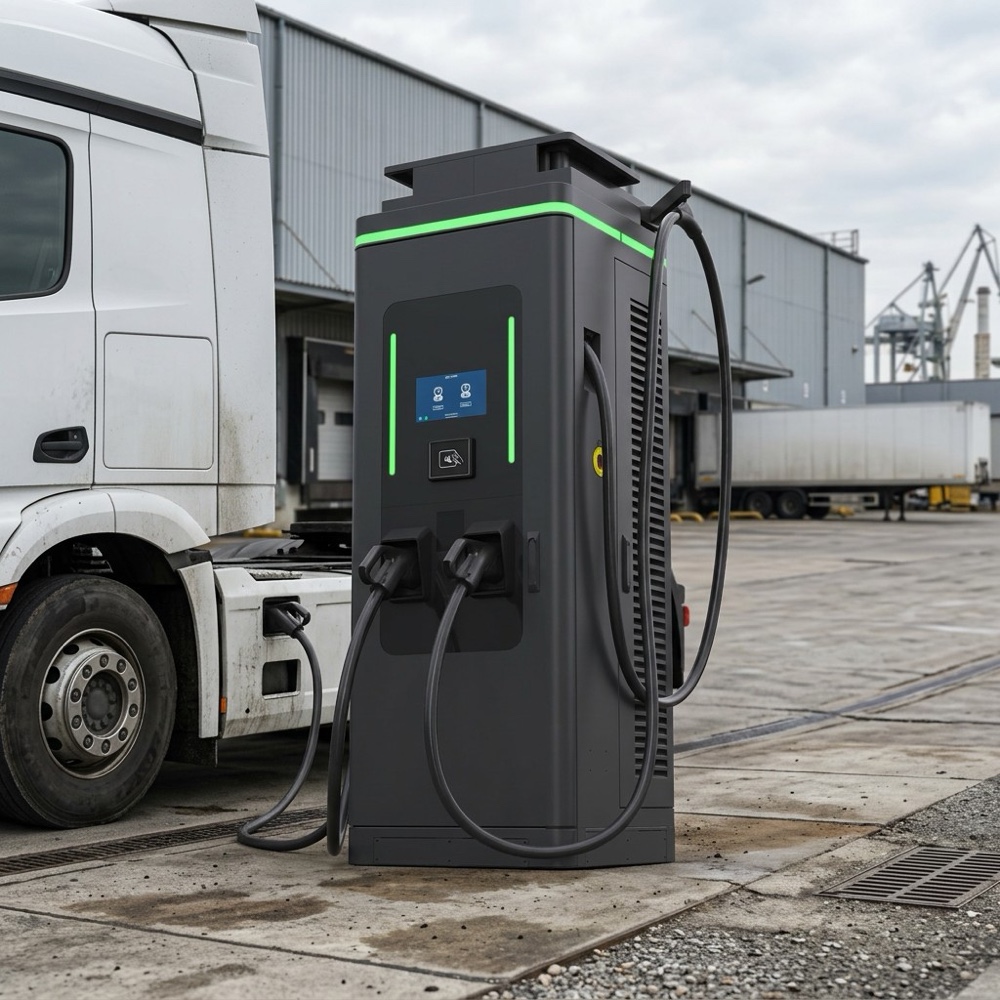

The SEC240 Series 240kW Integrated DC Fast Charger is a robust, all-in-one charging solution designed for high-turnover commercial charging stations. By integrating MIDA’s high-efficiency 60kW power modules into a single enclosure, the SEC240 delivers a continuous 240kW output with a peak efficiency of ≥96%. Its 1000V DC output capability ensures full compatibility with the latest high-voltage EV battery systems, reducing charging times significantly for vehicles like electric trucks, buses, and high-performance passenger cars.

Key Takeaways

• Integrated Design: Streamlined cabinet housing all power conversion and control electronics for easier installation.
• High Voltage Platform: Supports up to 1000V DC, ideal for future-proofing against new EV models.
• Superior Protection: IP54 rated with comprehensive electrical protections for safe outdoor use.
• Flexible Billing: Integrated credit card reader, RFID, and APP-based payment options via OCPP.

Advanced Thermal Management and Durability

The SEC240 Series is engineered to handle the heat of high-power charging. It features a specialized internal airflow design that pulls cool air from the bottom and exhausts hot air through the top, protecting the power modules from overheating during 24/7 operations. The enclosure is built from galvanized steel with a high-durability coating to resist UV, salt spray, and corrosion, ensuring a service life of over 10 years even in harsh coastal or industrial environments.

Technical Specifications

Seamless Integration with Global Standards

Whether you are operating in Europe, North America, or Asia, the SEC240 is built to comply with international standards. It supports multiple charging protocols including CCS1, CCS2, and GBT, and is fully compatible with OCPP 1.6J and 2.0.1. This allows for seamless integration into existing Charge Point Management Systems (CPMS), enabling remote monitoring, firmware updates, and complex billing structures across a large network of stations.

Frequently Asked Questions (FAQ)

Q1: Can it charge a bus and a car at the same time? Yes, it can split the 240kW power between two vehicles based on their real-time demand.

Q2: What is the benefit of the 1000V output? It allows the charger to deliver full power to vehicles with 800V battery systems, reducing charging time by up to 30% compared to 500V chargers.

Q3: Is the SEC240 easy to maintain? Yes, the modular design allows for front-access maintenance and quick module swaps.

Q4: Does it include a cable management system? Optional retractable cable management systems are available to prevent cables from lying on the ground.

Q5: What safety certifications does it have? It is compliant with CE, TUV, and GBT standards.

Q6: Can we customize the UI for our brand? Yes, the touchscreen interface can be customized with your company logo and brand colors.

Q7: Does it support dynamic load balancing with other chargers? Yes, when connected to a management system, it can participate in site-wide load balancing.
