EV Charger Station

180kw 240kw 360kw UL Rated DC Charging Station Tesla Fast DC Charger Point
Rate Power:DC Fast Charging Station

Input voltage range:305-520 VAC

Wide temperature range::-30ºC to +65ºC

AC Grid Frequency:40-65Hz

Output Voltage:150V-1000V

protocol compatible:OCPP1.6

Output current:125A-500A

Power Factor:≥0.99

Leakage current:≤10mA

Power Frequency Withstand Voltage:2500VAC
30kW 40kW Floor mounted or Wall Mounted DC Fast Charger Station
Model:MIDA-PD-30KW

Rated voltage:DC 400V

Input Rating:380Vac± 15%

Power Factor:>0.99 @ full load

TFT-LCD Touch Panel:4.3′ touch display

Certification:CE ROHS

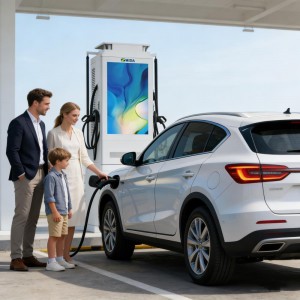

120KW 160kw 180kw DC EV Charger StationWith RFID Card Payment With OCPP1.6J

Rated current : 300A

Operating voltage : 1000V DC

Insulation resistance : >2000MΩ

Terminal temperature rise :<50K

Withstand voltage :3200V

Waterproof degree:IP54

Contact impedance:0.5MΩ Max
40KW UR100040-LQ Liquid Cooling DC Charging Module For DC Charger Station
Model No.:UR100040-LQ

Input Voltage:Rated voltage 380Vac, three phase (no center line), operating range 274-487Vac

Rated Output Power:30kW

Output Voltage Range:50-1000VDC

Peak Efficiency:≥ 96%

Power Factor:≥0.99

Current Regulation Accuracy:≤±1%

Communication Protocol:CAN
30KW EV Charger Power Module Used For CCS2 And CHAdeMO EV Charger Station
Model No.:MD100030FEU

Input Voltage:Rated voltage 380Vac, three phase (no center line), operating range 274-487Vac

Rated Output Power:30kW

Output Voltage Range:50-1000VDC

Peak Efficiency:≥ 96%

Power Factor:≥0.99

Current Regulation Accuracy:≤±1%

Communication Protocol:CAN
20KW Air Cooled EV Fast Charger Module For DC Charger Station
Model No.:MD100020FEU

Input Voltage:Rated voltage 380Vac, three phase (no center line), operating range 274-487Vac

Rated Output Power:20kW

Output Voltage Range:50-1000VDC

Peak Efficiency:≥ 96%

Power Factor:≥0.99

Current Regulation Accuracy:≤±1%

Communication Protocol:CAN
30kw AC DC Power Module UXR100030B EMC Class B EV Charging Module
Model No.:UXR100030B

Input Voltage:Rated voltage 380Vac, three phase (no center line), operating range 274-487Vac

Rated Output Power:30kW

Output Voltage Range:50-1000VDC

Peak Efficiency:≥ 96%

Power Factor:≥0.99

Current Regulation Accuracy:≤±1%

Communication Protocol:CAN
32A 7KW Type 1 WallBox EV Charging Station with Wifi APP

Product Name:32A 7KW Type 1 WallBox EV Charging Station with Wifi APP
15KW EV charger module used for CCS2 and CHAdeMO EV charger

15KW 750V Charger Power Module:

Main Feature:

*Inside high frequency transformer isolation

*Full hot plug design

*High efficiency over the full load range, full load efficiency higher than 95.5%

*Wide output voltage range, 150-750Vdc, suitable for a wide range of EVs

*Constant current for higher output power at low output voltage

*An internal patented intelligent discharge circuit automatically discharges residual charge, simplifying system designs

*Low standby power consumption, less than 9W

*3 Phase without neutral elinates the risk of high neutral currents

*3 Phase active power factor correction technology, reduces the harmonic interference to the grid

* Dual DSP design, provides the full digital control, less componets means higher reliability

*Wide input voltage range, 260-530Vac, allows oparation in most poor grid conditions

*Wide operating temperature range, -40°C~+75°C
30KW High Efficiency DC Fast Charging Station Use EV Charger Power Module

Overview

Quick Details

Place of Origin:

China

Model Number:

DCM1000100

Type:

DC/AC Inverters

Output Type:

TRIPLE, Multiple

Output Current:

60A

Output Frequency:

50/60Hz

Size:

455*300*94MM(D*W*H)

Weight:

17KG

Certificate:

CE

Product name:

30kW Power Module

Power Supply:

3P+PE

Rated Voltage:

260~470V AC

Max. Input Current:

60A

Input Frequency:

50/60Hz

Standby Power:

<8W

Rated Power:

30kW

Enclosure:

Aluminized Zinc plate (SGLCC)

LED Indicator:

Green/Yellow/Red

Configuration:

Manual/Auto
20kW High Efficiency Electric Vehicle DC Fast Charging Station Use EV Charger Power Module

Overview

Quick Details

Place of Origin:

China

Model Number:

DCM1000100

Type:

DC/AC Inverters

Output Type:

TRIPLE, Multiple

Output Current:

60A

Output Frequency:

50/60Hz

Size:

455*300*94MM(D*W*H)

Weight:

17KG

Certificate:

CE

Product name:

30kW Power Module

Power Supply:

3P+PE

Rated Voltage:

260~470V AC

Max. Input Current:

60A

Input Frequency:

50/60Hz

Standby Power:

<8W

Rated Power:

30kW

Enclosure:

Aluminized Zinc plate (SGLCC)

LED Indicator:

Green/Yellow/Red

Configuration:

Manual/Auto

ev portable charger 15 kw ev dc fast charger ccs chademo ev charger

**Fast, mobile & flexible**

Mobile charging with up to 200 Km/h!The CHR-30 quick-charger was developed for electric vehicleswith CHAdeMO or ccs Cormbo DC charging sockets and is designed for semi-mobile use.It is compatible with all popularindustrial sockets and can be used with CEE63 plug sockets.The charger is flexible in use thanks to its compact dimensions and is especially suitable for use with vehicle pools,in

**Function and Features** **for 15KW portable EV charger**

1)The communication board has the high-speed CAN net work can communicate with BMS of the electric car and complete the charger charge control.It used to judge the power battery type of the electric car and obtains the systematic parameter and also obtains the status data of the power battery’s voltage,current and temperature in the course of charging and before charging.

2)4.3 inches LCD touch screen display with indicator function,which can real-time display the remaining battery power,charging voltage charging

**Product Description**

Working condition of 15kw portable dc charger:

1) Prevent the rain, water, avoid direct sunlight ,away from the sources of charger,such us fire
source, combustible gas,rain,snow smoke,sand-dust, ect.
2) Operating temperature:-20℃~45℃
3) Operating humidity:5%~95%
4) Operating altitude:<=2000m

**Specifications**

specification parameter

Mode

CHR-15

Output voltage

50VDC~500VDC

Output current

33A

Input voltage

380V±15%

Input frequency

50Hz±5%

AP

12VDC

Frequency

≤0.1%

Output current accuracy

≤0.1%

Ripple voltage

≤±0.2%(MAX)

Efficiency

≥96%(Rated)

Power factor

≥0.99

Input current harmonic

≤5%

Current-unbalance

≤±3%

Protection

IP23

Communication

GB,CHAdeMO,CCS,Tesla

Noise

≤65dB

Operation Temperature

-20℃- 45℃

Working Relative Humidity

RH≤95%

Insulation Resistance

AC-GND ≥10MΩ

DC-GND ≥10MΩ

Input to output ≥10MΩ

Dielectric Voltage withstand

AC-GND 2500VAC,time:1min,Leakage Current≤10mA

DC-GND 2500VAC,time:1min,Leakage Current≤10mA

Input to output 2500VAC,time:1min,Leakage Current≤10mA

Dimension

450mm*300mm*150mm

Weight

15kg

<< < Previous 1 2 3 4 Next > >> Page 2 / 4

specification parameter
Mode	CHR-15
Output voltage	50VDC~500VDC
Output current	33A
Input voltage	380V±15%
Input frequency	50Hz±5%
AP	12VDC
Frequency	≤0.1%
Output current accuracy	≤0.1%
Ripple voltage	≤±0.2%(MAX)
Efficiency	≥96%(Rated)
Power factor	≥0.99
Input current harmonic	≤5%
Current-unbalance	≤±3%
Protection	IP23
Communication	GB,CHAdeMO,CCS,Tesla
Noise	≤65dB
Operation Temperature	-20℃- 45℃
Working Relative Humidity	RH≤95%
Insulation Resistance	AC-GND ≥10MΩ DC-GND ≥10MΩ Input to output ≥10MΩ
Dielectric Voltage withstand	AC-GND 2500VAC,time:1min,Leakage Current≤10mA DC-GND 2500VAC,time:1min,Leakage Current≤10mA Input to output 2500VAC,time:1min,Leakage Current≤10mA
Dimension	450mm300mm150mm
Weight	15kg
