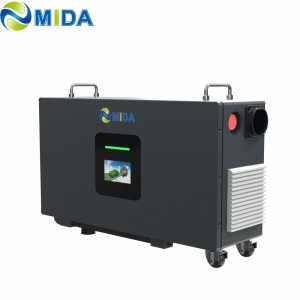

7kw 20kw CCS2 Gb/T Dc Movable Portable Dc Fast Charger for Electric Cars

Short Description:

Rate Power:7KW 20KW
Input voltage range:230-400VAC
Input Voltage Type:TN-s(Three Phase Five wire)
AC Grid Frequency:45-65Hz
Output Voltage:150V-1000V
protocol compatible:OCPP1.6
Output current:20A/67A
Power Factor:≥0.99
Leakage current:≤10mA
HMI:4.3-inch touch screen

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

		7kW		20kW
Environment	Condition	Indoors or outdoors
	Working temperature	-25℃ ~ +50℃
	Storage Temperature	-40℃ ~ +70℃
	Relative humidity	5%~95% No condensation
Input	AC input connection	L + N + PE		L1 + L2 + L3 + N + PE
	Voltage range	230VAC; 50/60 Hz		400VAC; 50/60 Hz
	Maximum input current	Refer to nameplate for details
	power factor	≥ 0.99（Full load）
Output	Max power	Refer to nameplate for details
	output current	20	67
	output voltage	Refer to nameplate for details
	Efficiency	95%
Basic parameter	Gun cable	2meter(Optional)
	HMI	4.3-inch touch screen
	Protection grade	IP55

Previous: 30kw 40kw GBT CCS2 DC Wall-mounted Charger Station for Electric Car

Next: 7kw 20kw CHAdemo CCS DC Mobile Portable Charger Station

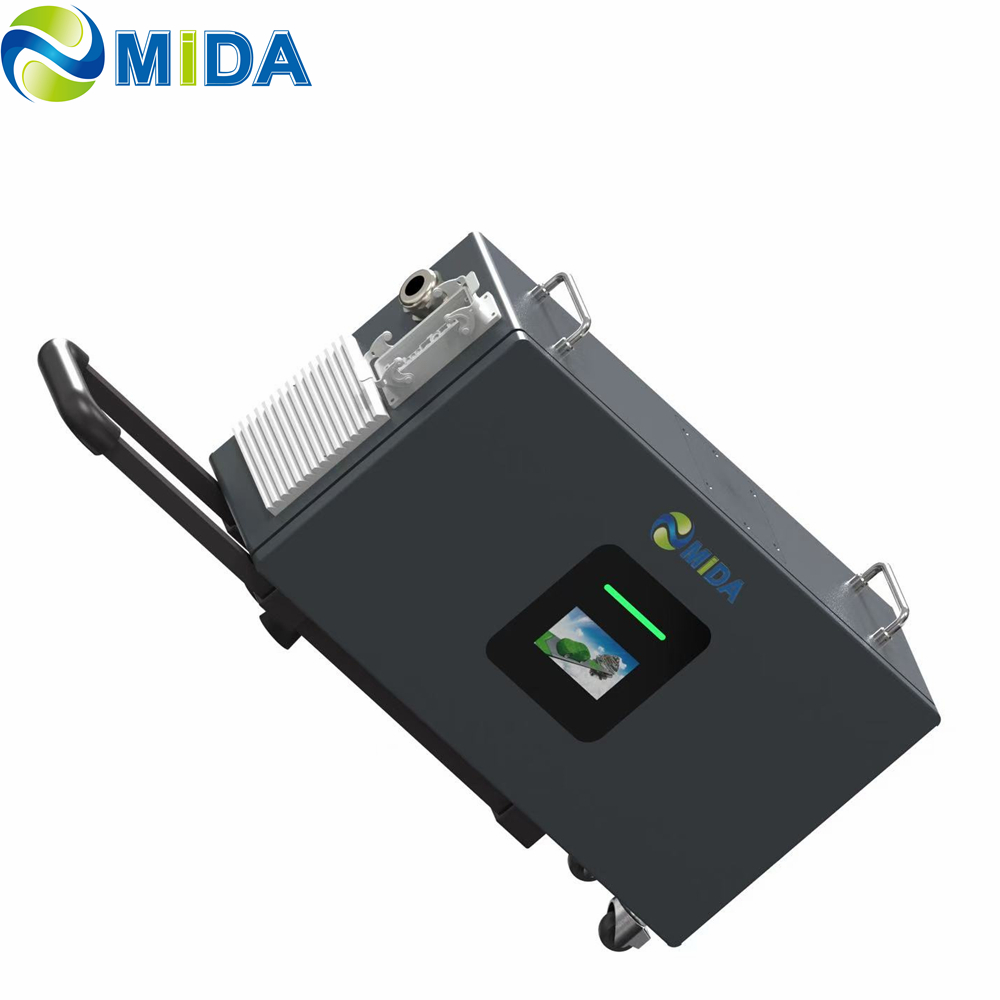

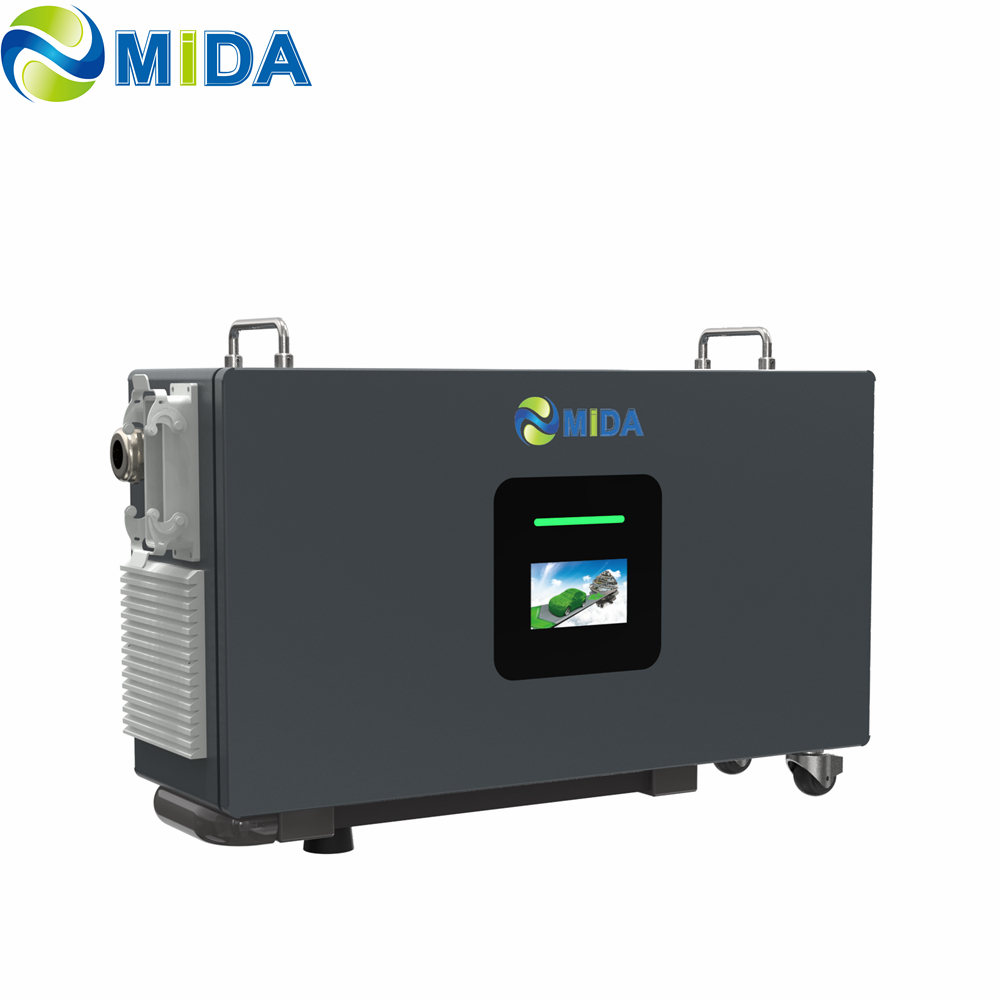

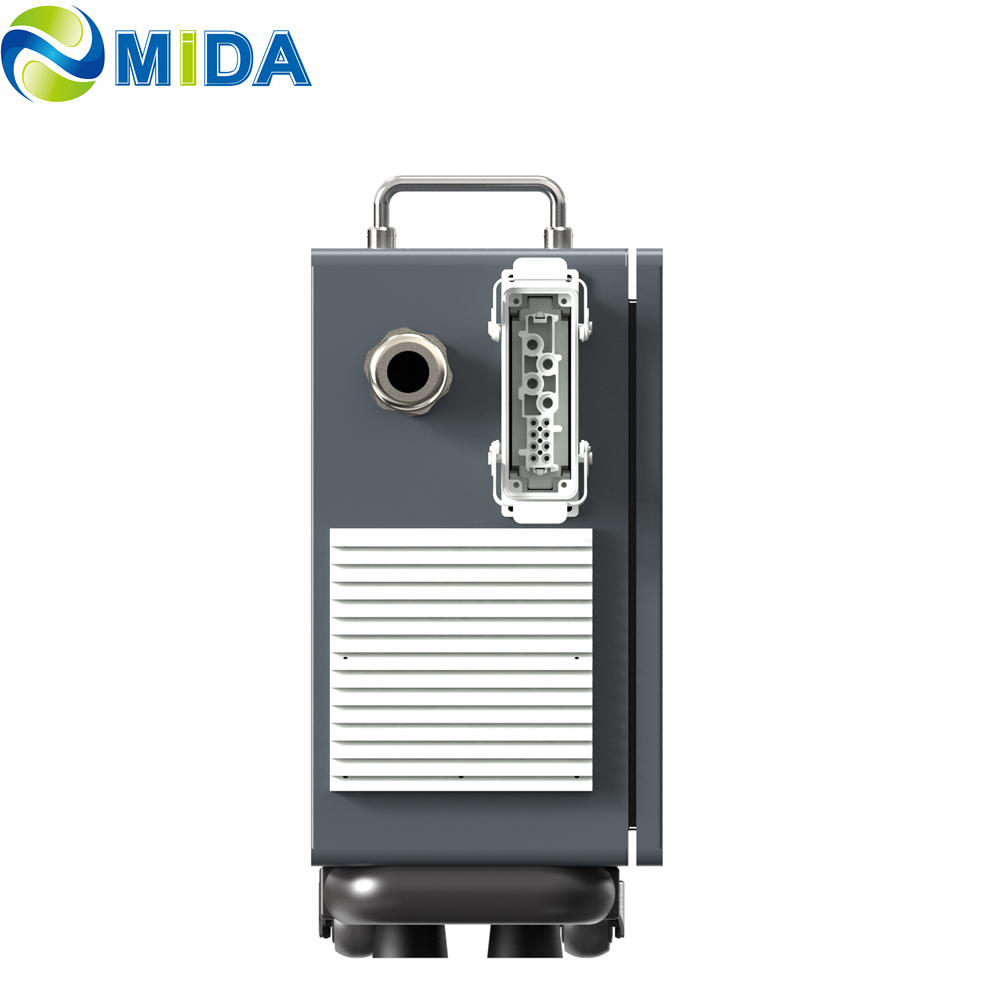

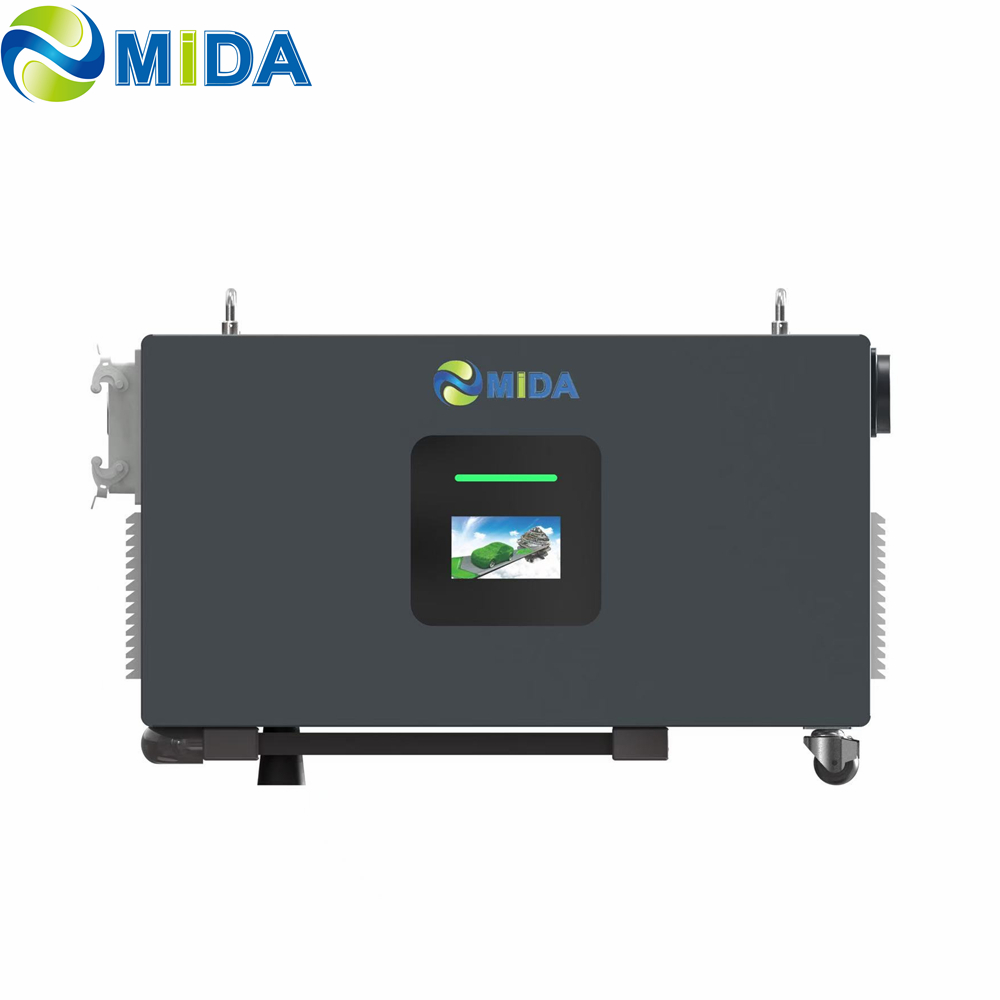

20KW dc portable
