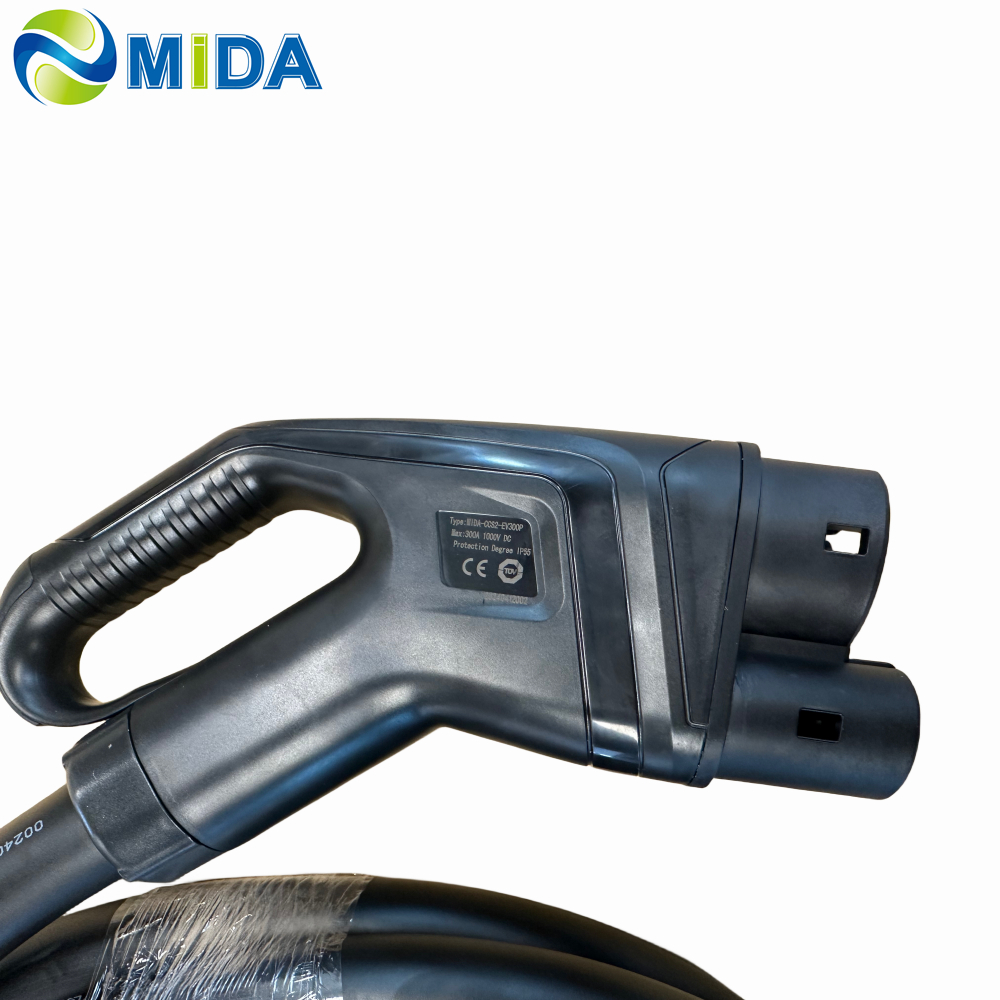

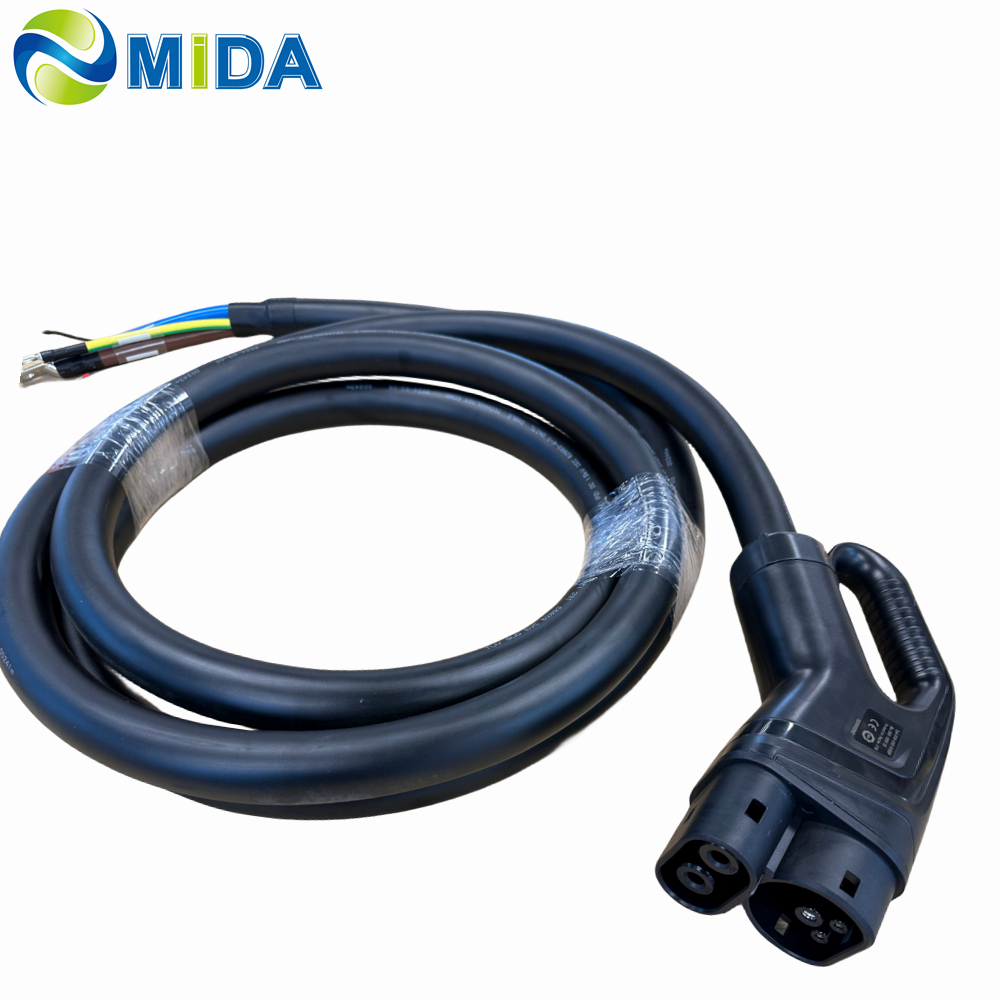

300A CCS Combo 2 Connector 300A CCS2 EV Plug Fact Charging Gun

Short Description:

Product Model:MIDA-CSS2-EV300P

Rated Current:300A

Operated Voltage:DC1000V
Withstand Voltage:3200V
Waterproof Degree:IP55
Certification:TUV,CE Approved

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Features

1.Conform to the provisions and requirements of IEC 62752, IEC 61851.
2.Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently.
3.TPE for cable insulation prolonging the aging resistance life-span, TPE sheath improved the bending life and wear resistance of ev charging cable.
4.Excellent protection performance, protection grade achieved IP67 (working condition).

Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable for EV Plug & EV Socket ,32A 240V 62196

Products Description

Rated current	300A
Operating voltage	1000V AC
Insulation Resistance	>1000 M Ω (DC500V)
Thermal temperature rise	<50K
Withstand voltage	3200V
Vibration resistance	Meet JDQ53.36.1.1-53.36.1.2 requirements
Contact impedance	0.5mMax
Mechanical life	no-load plug in/pull out >10000 times
Insertion and Extraction Force	<100 N
Shell material	Thermoplastic (Insulator inflammability UL94 V-0)
Contact Pin	Copper alloy, silver or nickel plating
Sealing gasket	Rubber or silicon rubber
Operating temperature	-30°C~+50°C
